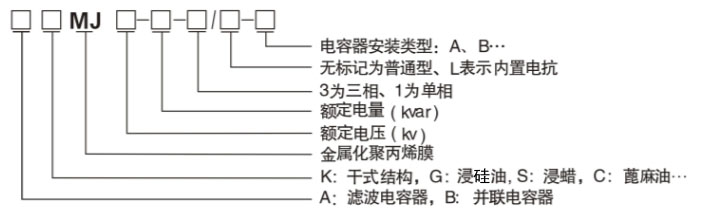

Model description

Product features

L the most advanced Swiss (matana) automatic winder in the world is used for winding;

The electrical parameters of each capacitor core group are screened and managed by computer, and the quality is reliable;

The capacitor core is impregnated with high vacuum silicone oil and filled with flame retardant resin to avoid the pollution of oil to the environment;

Special composite electrode material and reinforced insulating material are adopted to reduce the loss of capacitor and the loss of electric capacity in operation. Under normal conditions, the capacitance decreases less than 2% after 2 years of use;

The product has built-in discharge resistor, and the residual voltage drops below 75V after the capacitor is cut off for 3 minutes;

Built in over-voltage protection device, pressure pull off power cut-off device, with overload and fault protection function;

L the metal shell has been treated, with rust resistance and impact resistance;

L space saving, light weight, easy to handle, easy to install and simple, with mounting feet

L it is mainly used in 50Hz or 60Hz power system, which can improve power factor, reduce reactive power loss and improve voltage quality.

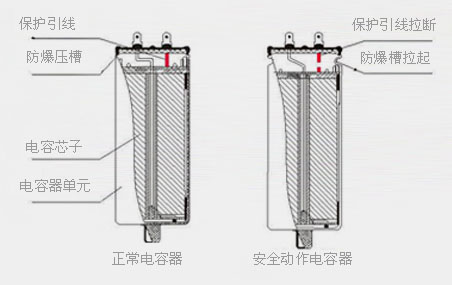

Operation principle of security device

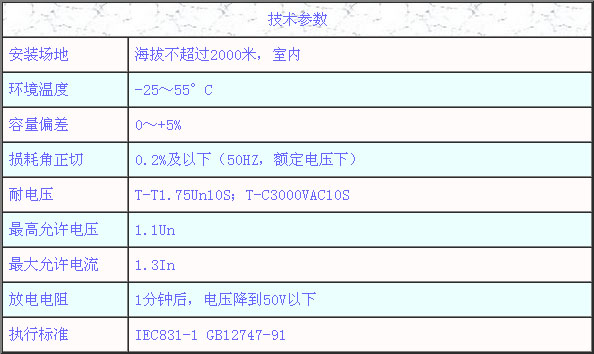

Technical Parameter

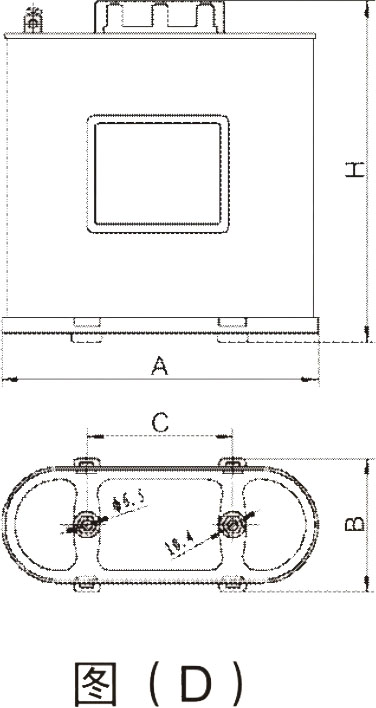

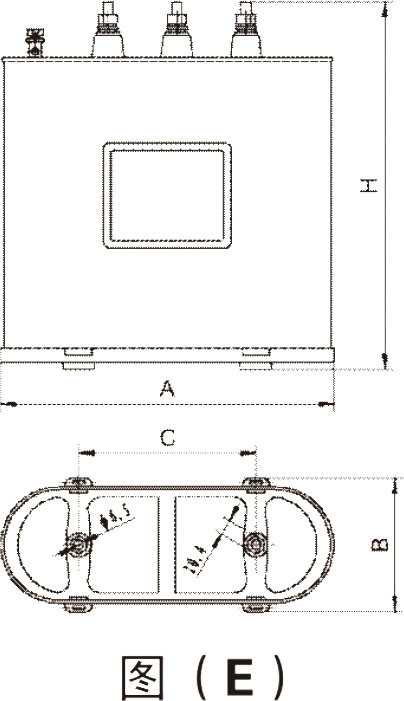

Installation dimension drawing

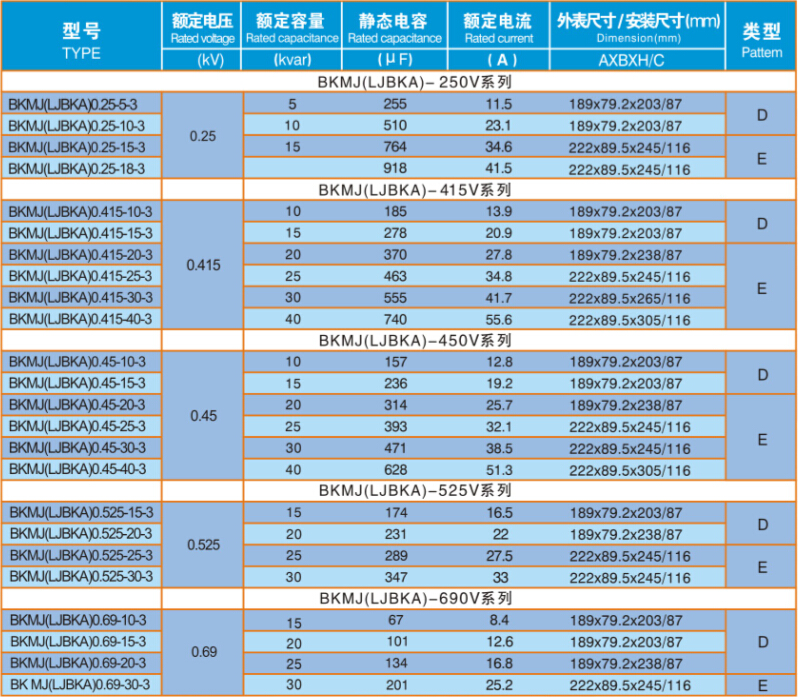

Capacitor specification and installation dimension table

Note: it can be produced according to user's requirements.
