Independent unit structure, each capacitor core has tensile explosion-proof equipment, which is safer, has strong heat dissipation performance, reduces energy consumption, reduces line loss, and greatly improves reactive power quality. Suitable for relatively harsh environment, strong stability. It's hot in the tropics and subtropics.

Performance characteristics:

1. Excellent self-healing ability, in the overvoltage damage part can quickly self repair.

2. The independent stretch explosion-proof structure owned by rare domestic enterprises can prevent overheating and secondary damage when the capacitor is accidentally damaged.

3. High vacuum impregnation and heat setting, filled with flame retardant colloidal material, to avoid oil pollution to the environment.

4. Design a new, safe and reliable terminal lead connection to prevent accidental touch, with unique structure.

5. Long service life, special composite electrode material and reinforced insulating material design, low loss of capacitor and small loss of electric capacity in operation.

6. The capacitor has high quality factor and strong over-current working ability. It can filter out the 3rd, 5th and 7th harmonics when cooperating with series reactor.

7. Built in discharge resistor

Other specifications can be customized

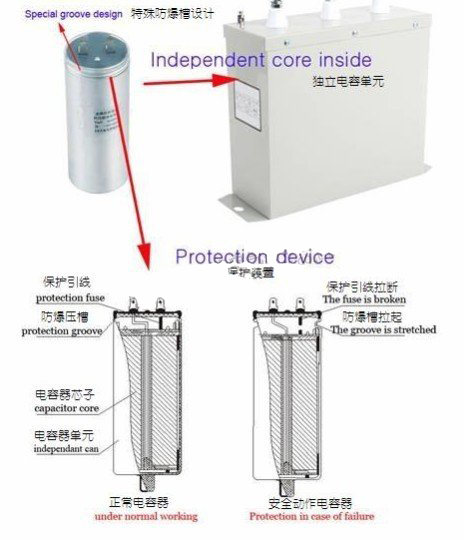

Independent unit structure:

In case of internal fault of capacitor, a series of self-healing collapses will occur, resulting in the increase of internal pressure of capacitor element. In order to avoid the burst of capacitor shell, the internal structure of capacitor element is designed with pressure breaking power cut-off mechanism (protection device). These protection devices cause the upper cover bulge due to the increase of internal pressure, so that the hole foil of weakness treatment is pulled off and isolated from the power supply, Prevent secondary disasters.

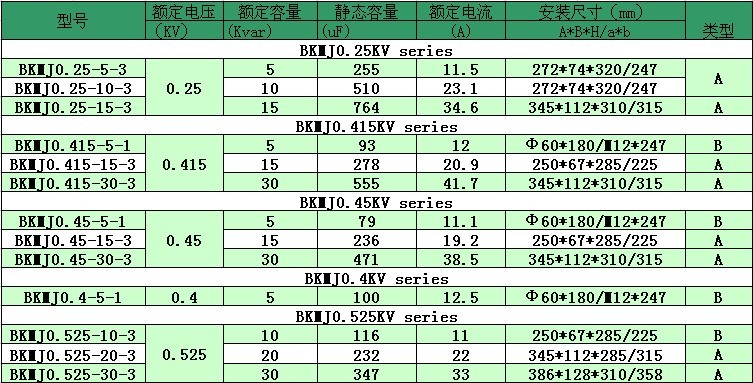

Selection volume:
